Product portfolio
We are happy to provide with the complete range of Scattering Systems - designed to your specific demands...

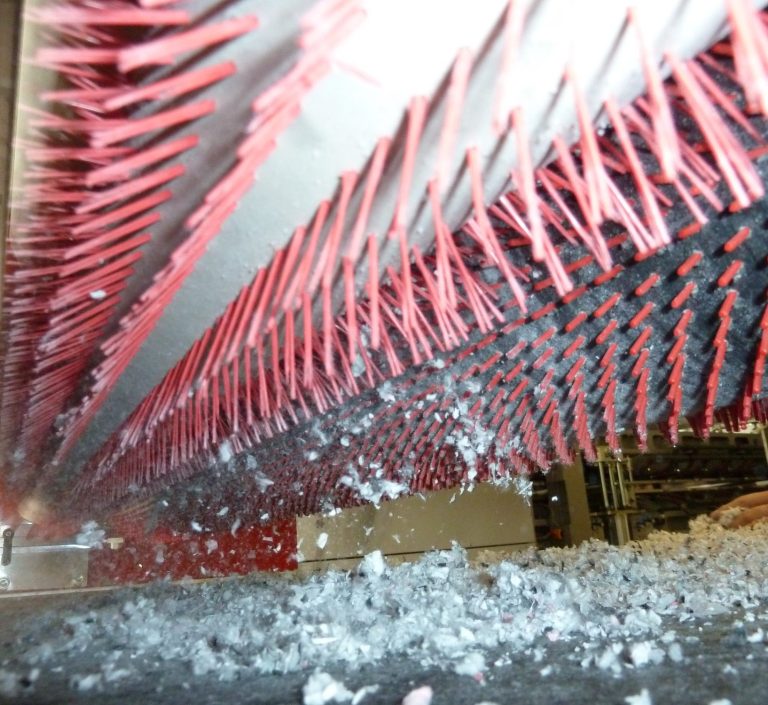

Granule Scattering Technology
Technical features:
- Doctor blades with adjustable segments
- Individual designed scattering rollers/ brush-off rollers to match technical specifiactions of scattering materials
- Clockwise and counter clockwise rotating brush-off- rollers
- Easy adjustment of the distance between scattering and brush-off-roller
- Standard scattering widths from 400-4.200 mm
- etc...

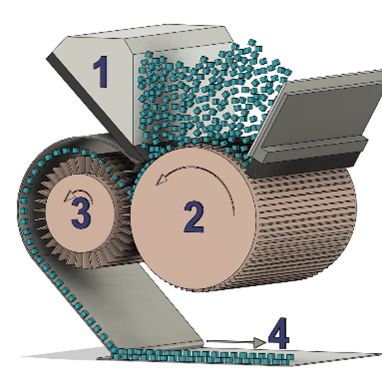

SETUP:
1 Flexible doctor blade
2 Scattering roller
3 Brush-off-roller
4 Scattering mask
5 Scattering material sizes from
Typical applications
- PVC granules for flooring industry
- Granules from plastic for construction, automotive and composite industry
- Granules for recycling industry
- Decorative coating
Powder Scattering Technology
Technical features:

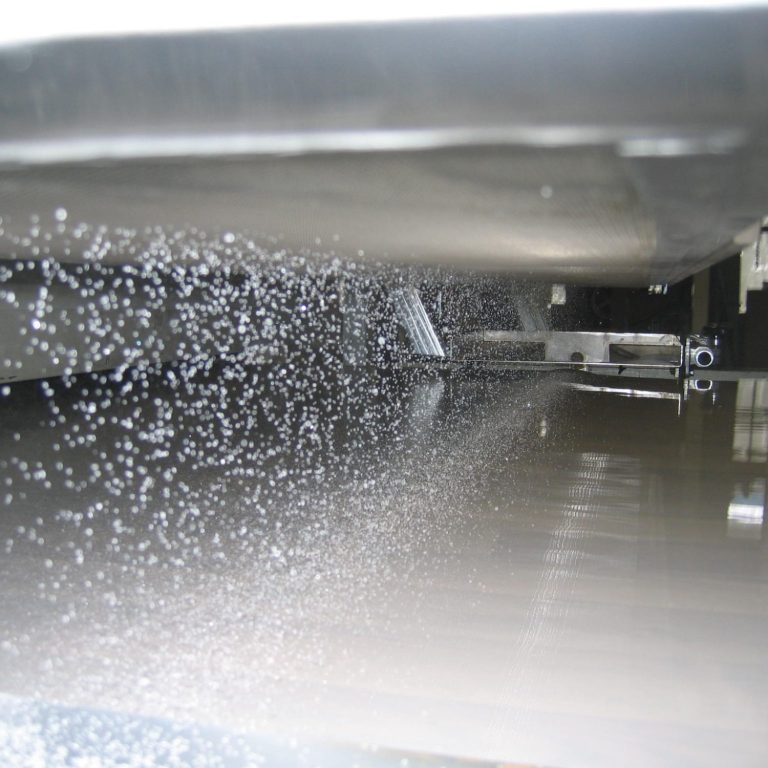

- Precise and uniform distribution of scattering material without cloud building

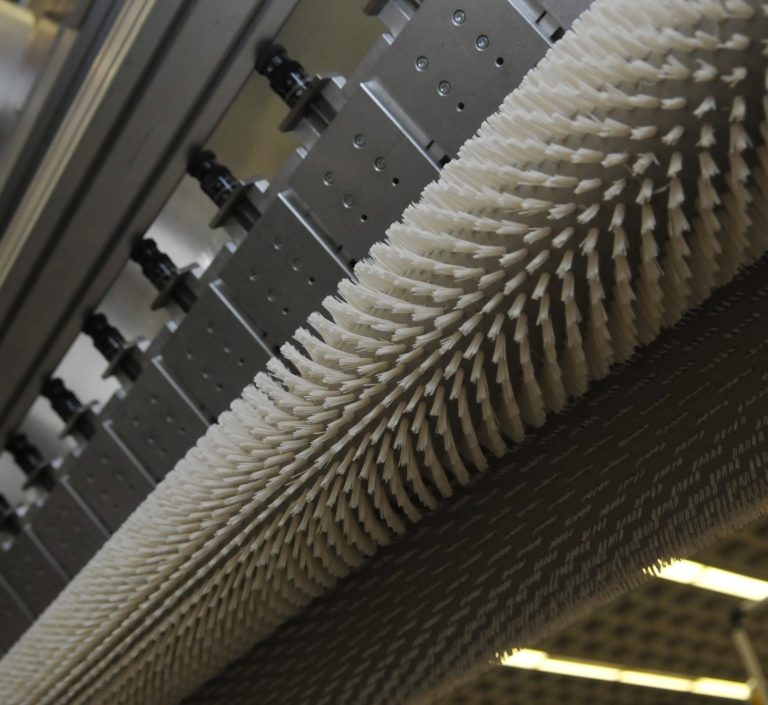

- Specially designed oscillating brush system with frequency control
- Servo controlled motor for scattering roller
- Easy adjustment of oscillating brush with swallowtail on both sides
- Easy and quick exchange of scattering roller due to a special designed gearbox housing
- Flexible doctor blades to optimize the dosage of scattering material
- Standard scattering widths: 300-5.500mm
Typical applications:
- Cordundum for flooring/laminate production
- Adhesive powder for bonding/coating/lamination
- Powder for impregnation applications
- Black carbon for filter industry
- Decorative surfaces

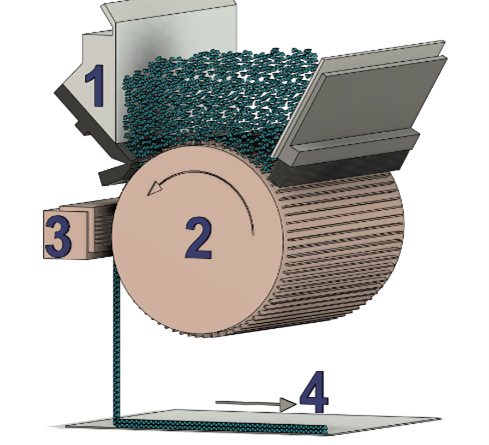

Setup:
- Flexible doctor blade
- Scattering roller
- Oscilatting brush-off device
- Scattering material sizes from 40μ - 2mm
Fibre Scattering Technology
Technical features:
- Special designed material distributor for even distribution in the material funnel
- Doctor blades with adjustable segments
- Special designed scattering roller to hold the fibers
- Easy adjustment of the distance between scattering- and brush off roller
- Easy exchange of brush-off roller dues to special designed clamping device
- Standard scattering widths: 500-5.200mm

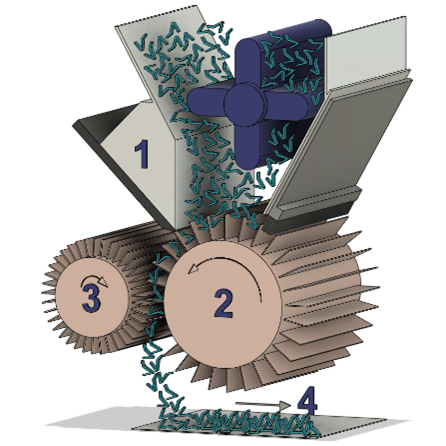

SETUP:
- Doctor blade
- Scattering roller
- Brush-off roller
- Scattering material sizes up to 8mm
Typical applications:
- Fibers for automotive-/ textile-/ construction industry
- Fibers out of circular economy/ recycling industry
Your TechnoPartner for
Scattering Solutions
The right partner at your side...
